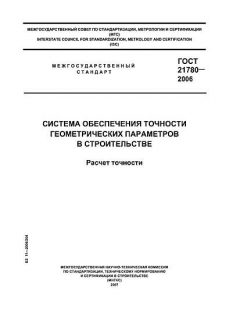

GOST 21780-2006 — "System of ensuring the accuracy of geometrical parameters in construction. Accuracy calculation" (Russian: ГОСТ 21780-2006 «Система обеспечения точности геометрических параметров в строительстве. Расчет точности»). The standard establishes methods for calculating and assessing the accuracy (tolerances and scatter) of geometric parameters of buildings, structures and their elements during design and preparation of working and technological documentation.

Abstract

This interstate (GOST) standard sets out the methodological principles and procedure for performing accuracy calculations for geometric parameters in construction projects. It defines terms (resulting and component parameters, calculation schemes, base, assembly level and related concepts), provides forms of basic equations for accuracy calculations, indicates accepted methods (direct and inverse problems, statistical and simplified approaches), and gives guidance on selecting critical parameters and on corrective measures when calculated accuracy does not meet functional requirements.

General information

• Status: Active / in force (adopted as an interstate standard and introduced as a national standard of the Russian Federation).
• Publication date: Designation year 2006; introduced into force in the Russian Federation from 1 January 2008 (approved by Rosstandart by order dated 30 March 2007, No. 59-st).
• Publisher: Adopted/introduced by the Federal Agency on Technical Regulating and Metrology (Rosstandart) as an interstate GOST standard; developed by technical committee for construction standardization (ТК 465).
• ICS / categories: Relates to construction and geometric measurement/verification—areas covered by ICS construction and metrology groups (construction standards / geometric product specification and measurement). Exact ICS subcode is not always published on free public listings for this document; subject matter aligns with ICS sectors for construction (91) and geometrical product specification / measurement (17.040).
• Edition / version: GOST 21780-2006 (current edition introduced 2008 as national implementation).
• Number of pages: 15 pages (standard text).

Scope

Applies to the design of buildings, structures and their elements. The standard establishes general provisions, methodological principles and the order for calculating the accuracy of geometric parameters in construction; it is intended as the basis for developing methodical documents that define specific calculation methods and features for different types of structures (including worked examples). The calculations are performed during development of working documentation and technological regulations for construction and surveying works.

Key topics and requirements

• Definitions: resulting (functional) parameters, component parameters, calculation scheme, base, assembly/collectability level and related terminology.
• Procedure to identify resulting parameters whose accuracy affects functional requirements and to determine allowable limits for those parameters.
• Construction of calculation schemes and formulation of the basic (source) equation relating resulting and component parameters.
• Selection of calculation method (direct, inverse, statistical, simplified) and formulation of accuracy equations for component and resulting parameters.
• Rules for assigning accuracy characteristics to component parameters (from standards, project/technical documentation or statistical analysis) and accounting for environmental/operational influences.
• Verification: solving direct and inverse problems, setting nominal and limit values, and corrective actions when conditions are not met (improve process accuracy, change assembly/base, revise design, allow partial assembleability and additional fitting operations).
• Guidance on simplified statistical calculations and examples for determining calculated limit deviations and assembly level.

Typical use and users

Primary users are design engineers, structural engineers, geodetic/survey specialists, construction technologists and quality/control engineers involved in producing working documentation and technological regulations. The standard is used when establishing functional tolerances, preparing assembly and survey procedures, performing pre-construction and assembly accuracy calculations, and defining acceptance/fitting operations in the project and production stages. Authorities and consultants preparing methodological guidance for construction quality control also rely on it.

Related standards

References and normative links include other GOSTs used in construction design and tolerancing (examples cited in the standard text: GOST 21.113-88, GOST 21778-81, GOST 21779-82, GOST 23615, GOST 23616, and others). The document also complements building codes and technical regulations in Russia and interstate guidance on structural assembly and surveying procedures.

Keywords

accuracy calculation; geometric parameters; tolerances; assembly (collectability); resulting parameter; component parameter; calculation scheme; construction design; surveying; functional tolerance.

FAQ

Q: What is this standard?

A: GOST 21780-2006 is an interstate standard titled "System of ensuring the accuracy of geometrical parameters in construction. Accuracy calculation", which provides methods and procedures for calculating and verifying the accuracy of geometric parameters in buildings and structures.

Q: What does it cover?

A: It covers terminology, selection of resulting parameters, construction of calculation schemes and source equations, methods for direct and inverse accuracy calculations (including statistical and simplified approaches), assignment of component-parameter accuracies, verification procedures and corrective options when calculated accuracy does not meet functional requirements.

Q: Who typically uses it?

A: Design and structural engineers, geodetic/survey teams, construction technologists, quality and acceptance engineers, and organizations preparing methodical guidance for construction tolerancing and survey/assembly procedures.

Q: Is it current or superseded?

A: The 2006 edition was introduced into force in the Russian Federation on 1 January 2008 and replaced the earlier GOST 21780-83. Public sources list the 2006 text as the operative edition; users should verify any amendments or later revisions with the national standards body (Rosstandart) or an up‑to‑date standards database before relying on it for compliance.

Q: Is it part of a series?

A: It is part of the body of construction and metrology standards used for specifying tolerances and accuracy in building design and construction and is referenced alongside other GOSTs and building codes that cover drawings, tolerancing conventions and measurement practices. Specific normative references are given in the standard and include several GOSTs related to design documentation and accuracy assignment.

Q: What are the key keywords?

A: Accuracy calculation; geometric parameters; functional tolerance; resulting parameter; component parameter; calculation scheme; assembly (collectability); surveying; construction design.
