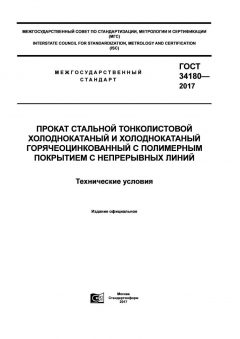

GOST 34180-2017 PDF

Full title and description

GOST 34180-2017 — Steel, cold‑rolled and cold‑rolled hot‑dip galvanized thin sheet with polymer (prepainted) coating applied by continuous coil‑coating (roller) processes. Technical conditions and delivery specifications for prepainted coil‑coated steel intended for construction, appliance panels, instrument engineering and related industries (non‑automotive applications).

Abstract

This standard sets technical requirements, test methods and acceptance criteria for continuously coil‑coated polymer prepainted cold‑rolled and cold‑rolled hot‑dip galvanized steel sheet. It covers substrate and metallic coating types, organic coating systems (paint, plastisol, etc.), mechanical and surface properties (adhesion, bend/impact/strength, hardness, gloss, colour contrast), inspection and marking, and conditions for delivery and acceptance. The standard was approved in 2017 and published in 2018.

General information

• Status: In force / effective (introduced 2017; implemented as national GOST technical standard).
• Publication date: 01 June 2018 (approved by the Federal Agency for Technical Regulation and Metrology in 2017).
• Publisher: Federal Agency on Technical Regulation and Metrology (Rosstandart), Russian Federation.
• ICS / categories: Flat steel products and semi‑products (77.140.50); Organic coatings / coil coating (25.220.60).
• Edition / version: GOST 34180-2017 (original issue / first introduction 2017; publication 2018).
• Number of pages: Approximately 42–43 pages (published text typically listed as 43 pages).

Scope

Applies to cold‑rolled and cold‑rolled hot‑dip galvanized thin steel sheet that is prepainted by continuous coil‑coating (roller application or laminating) with polymer systems. The standard specifies permitted substrate/coating combinations, surface preparation, coating application parameters, mechanical and appearance requirements, test methods for adhesion, gloss, hardness, bending and impact resistance, and conditions for supply and acceptance. It is intended for building materials, exterior panels for household appliances, instrument engineering and other industries excluding automotive, unless otherwise agreed between supplier and purchaser.

Key topics and requirements

• Definitions of substrate types and metallic coatings: zinc, iron‑zinc, zinc‑aluminium, zinc‑aluminium‑magnesium and similar hot‑dip coatings when agreed.
• Specification of organic coating types used for coil coating (paints, plastisol, PVDF and related systems where applicable) and nominal film thicknesses.
• Mechanical and performance requirements: adhesion (cross‑cut and other methods), bend test, impact resistance, strength tests and hardness (pencil method).
• Appearance and durability criteria: colour contrast, gloss measurement, visual defects acceptance and resistance to environmental factors.
• Test and inspection methods, sampling and acceptance rules; references to national test methods (for example adhesion testing standards).
• Packaging, marking, documentation and delivery conditions for coils and cut lengths.

Typical use and users

Manufacturers of coil‑coated steel and metal processors, steel service centres, architects and façade/cladding installers, manufacturers of household appliance exteriors, building material suppliers and quality laboratories. Procurement and quality assurance teams use the standard to specify material acceptance criteria for prepainted steel used in construction and industrial applications.

Related standards

Closely related international and national documents include EN 10169 (continuously organic coated / coil‑coated steel — technical delivery conditions) and test‑method series such as EN 13523; ASTM specifications for polymer precoated steel (e.g., ASTM A742); and other GOST documents governing metallic coatings and test methods (for example GOST 14918 on hot‑dip galvanized sheet and GOST 31149 for adhesion testing). These standards are commonly cross‑referenced when specifying substrate, coating and test protocols.

Keywords

prepainted steel, coil coating, polymer coating, cold‑rolled steel, hot‑dip galvanized, adhesion, gloss, hardness, bend test, impact resistance, technical delivery conditions, GOST.

FAQ

Q: What is this standard?

A: GOST 34180-2017 is a Russian national standard that defines technical conditions, test methods and acceptance criteria for continuously coil‑coated (prepainted) cold‑rolled and cold‑rolled hot‑dip galvanized thin steel sheet.

Q: What does it cover?

A: It covers substrate and metallic coating options, polymer coating systems (paint, plastisol, etc.), required mechanical and surface properties, test and inspection methods (adhesion, bend, impact, hardness, gloss, colour contrast), marking, packaging and delivery rules.

Q: Who typically uses it?

A: Coil‑coating mills, steel service centres, builders and specifiers, appliance body manufacturers, façade and cladding contractors, and testing/QA laboratories. Procurement and engineering teams reference it when ordering prepainted steel for non‑automotive industrial and construction applications.

Q: Is it current or superseded?

A: As published it is GOST 34180-2017 (approved 2017; published 2018) and is listed as the active national technical standard. Users should verify with the national standards body or official catalogue for any later amendments or revisions before final specification.

Q: Is it part of a series?

A: It is a standalone GOST technical conditions document but is typically used alongside related standards on metallic coatings, coil coating test methods and environmental/transport conditions (other GOSTs and international standards such as EN 10169 / EN 13523 or ASTM specifications).

Q: What are the key keywords?

A: prepainted steel, coil coating, polymer coating, hot‑dip galvanized, cold‑rolled sheet, adhesion, gloss, bend test, impact resistance, technical delivery conditions.
